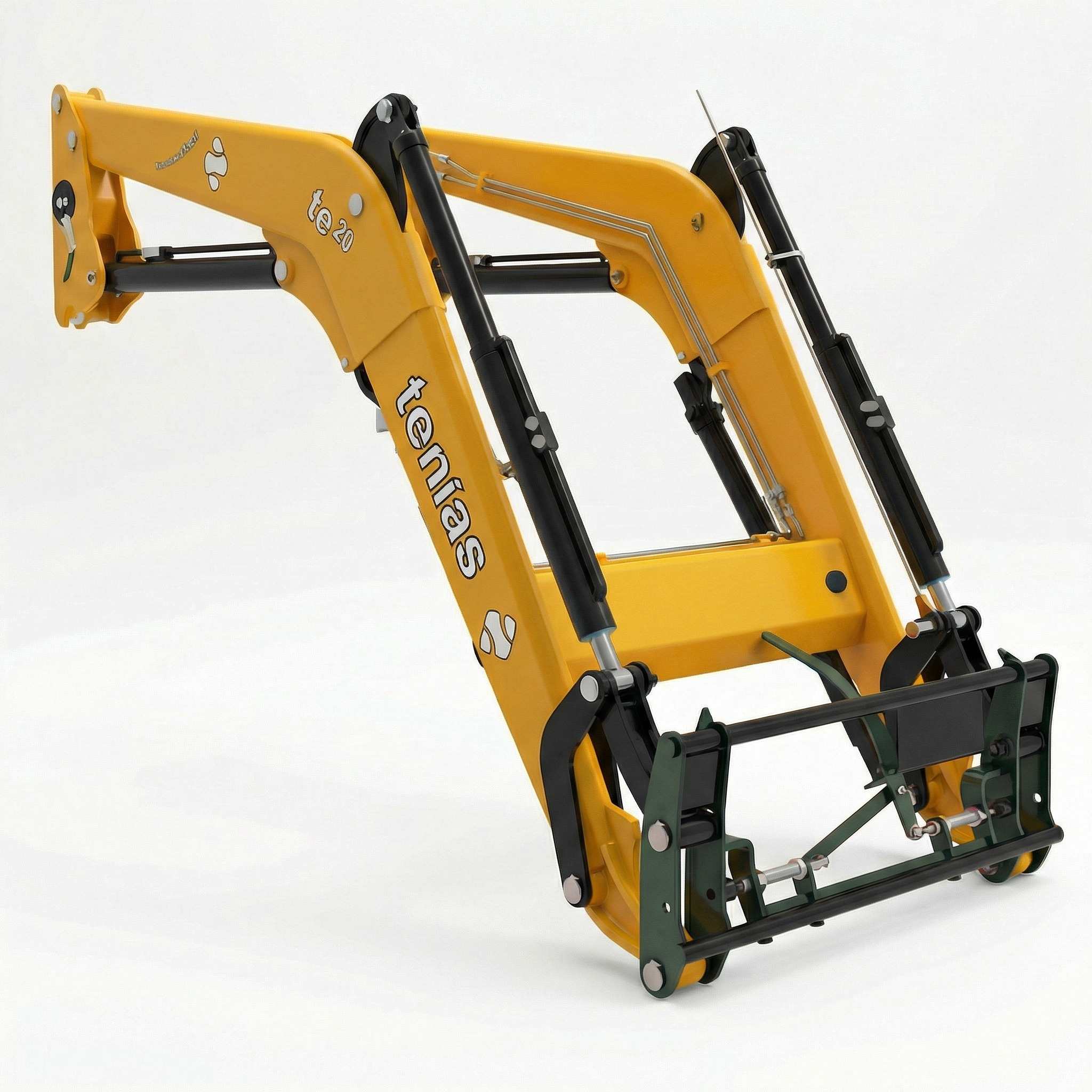

Evolution Series Loader
They offer robustness, versatility and comfort thanks to an innovative design with high quality materials that optimize efficiency, productivity and durability in daily work.
Product details
- DRP System - Quick shovel release
- Safety valve
- Self-greasing bushings
- Mechanical leveling system
- Integrated coupling to each tractor model
Configuration options
- AH System - Hydraulic cushioning
- Euro bucket quick release o Direct loader attachment to the implement
- MS System - Single lever mixer
- DR2B System / DR4B System - Quick coupling of nozzles (flat faces) or 2 threaded nozzles release
- Paint finish in different colors
Product details
DRP System - Quick shovel release
The DRP System, an innovative coupling system that provides greater safety and speed, makes it easier to attach the shovel to the coupling.
Safety valve
It regulates the pressure of the tumbling cylinders in case of any mechanical contact, avoiding possible breakage.
Self-greasing bushings
In all joints, the loader has self-greasing bushings and treated and zinc-plated bolts, achieving a good adjustment in all of them.
Mechanical leveling system
Interior detail of the arm with mechanical leveling system.
Integrated coupling to each tractor model
Specially designed adaptations for each tractor model, allowing access to all engine components. Both the coupling and the arms are designed to be compatible with the front linkage.
Technical Data
NOTE: The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te8
MOD Te9
MOD Te10
MOD Te20
MOD Te30
MOD Te40
Max. lift height up to axis of rotation (A)
2846 mm
3142 mm
3720 mm
4051 mm
4301 mm
4564 mm
Max. lift height below bucket level (B)
2690 mm
2909 mm
3484 mm
3815 mm
4065 mm
4327 mm
Ground clearance with bucket overturned (C)
2000 mm
2295 mm
2887 mm
3197 mm
3447 mm
3708 mm
Ground clearance with horizontal arm (D)
1420 mm
1469 mm
1706 mm
1792 mm
1970 mm
2140 mm
Bucket pick-up angle (E)
64º
64º
64º
64º
62º
62º
Max. turning angle (F)
72º
75º
74º
75º
74º
74º
Bucket pick-up angle on the ground (G)
54º
57º
57º
59º
57º
57º
Digging depth (H)
134 mm
211 mm
214 mm
214 mm
214 mm
214 mm
Starting force
1900 kg
2044 kg
2728 kg
2160 kg
2858 kg
3177 kg
Payload capacity
1550 kg
1650 kg
2068 kg
1824 kg
2133 kg
2550 kg
Load capacity at max. height
1260 kg
1362 kg
1628 kg
1530 kg
1755 kg
2215 kg
Recommended power
From 50 hp to 60 hp
From 60 hp to 90 hp
From 80 hp to 110 hp
From 100 hp to 140 hp
From 130 hp to 170 hp
From 160 hp to 220 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te8
Max. lift height up to axis of rotation (A)
2846 mm
Max. lift height below bucket level (B)
2690 mm
Ground clearance with bucket overturned (C)
2000 mm
Ground clearance with horizontal arm (D)
1420 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
72º
Bucket pick-up angle on the ground (G)
54º
Digging depth (H)
134 mm
Starting force
1900 kg
Payload capacity
1550 kg
Load capacity at max. height
1260 kg
Recommended power
From 50 hp to 60 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te9
Max. lift height up to axis of rotation (A)
3142 mm
Max. lift height below bucket level (B)
2909 mm
Ground clearance with bucket overturned (C)
2295 mm
Ground clearance with horizontal arm (D)
1469 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
75º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
211 mm
Starting force
2044 kg
Payload capacity
1650 kg
Load capacity at max. height
1362 kg
Recommended power
From 60 hp to 90 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te10
Max. lift height up to axis of rotation (A)
3720 mm
Max. lift height below bucket level (B)
3484 mm
Ground clearance with bucket overturned (C)
2887 mm
Ground clearance with horizontal arm (D)
1706 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
2728 kg
Payload capacity
2068 kg
Load capacity at max. height
1628 kg
Recommended power
From 80 hp to 110 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te20
Max. lift height up to axis of rotation (A)
4051 mm
Max. lift height below bucket level (B)
3815 mm
Ground clearance with bucket overturned (C)
3197 mm
Ground clearance with horizontal arm (D)
1792 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
75º
Bucket pick-up angle on the ground (G)
59º
Digging depth (H)
214 mm
Starting force
2160 kg
Payload capacity
1824 kg
Load capacity at max. height
1530 kg
Recommended power
From 100 hp to 140 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te30
Max. lift height up to axis of rotation (A)
4031 mm
Max. lift height below bucket level (B)
4065 mm
Ground clearance with bucket overturned (C)
3447 mm
Ground clearance with horizontal arm (D)
1970 mm
Bucket pick-up angle (E)
62º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
2858 kg
Payload capacity
2133 kg
Load capacity at max. height
1755 kg
Recommended power
From 130 hp to 170 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te40
Max. lift height up to axis of rotation (A)
4564 mm
Max. lift height below bucket level (B)
4327 mm
Ground clearance with bucket overturned (C)
3708 mm
Ground clearance with horizontal arm (D)
2140 mm
Bucket pick-up angle (E)
62º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
3177 kg
Payload capacity
2550 kg
Load capacity at max. height
2215 kg
Recommended power
From 160 hp to 220 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te8
Max. lift height up to axis of rotation (A)
2846 mm
Max. lift height below bucket level (B)
2690 mm
Ground clearance with bucket overturned (C)
2000 mm
Ground clearance with horizontal arm (D)
1420 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
72º
Bucket pick-up angle on the ground (G)
54º
Digging depth (H)
134 mm
Starting force
1900 kg
Payload capacity
1550 kg
Load capacity at max. height
1260 kg
Recommended power
From 50 hp to 60 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te9
Max. lift height up to axis of rotation (A)
3142 mm
Max. lift height below bucket level (B)
2909 mm
Ground clearance with bucket overturned (C)
2295 mm
Ground clearance with horizontal arm (D)
1469 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
75º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
211 mm
Starting force
2044 kg
Payload capacity
1650 kg
Load capacity at max. height
1362 kg
Recommended power
From 60 hp to 90 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te10
Max. lift height up to axis of rotation (A)
3720 mm
Max. lift height below bucket level (B)
3484 mm
Ground clearance with bucket overturned (C)
2887 mm
Ground clearance with horizontal arm (D)
1706 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
2728 kg
Payload capacity
2068 kg
Load capacity at max. height
1628 kg
Recommended power
From 80 hp to 110 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te20
Max. lift height up to axis of rotation (A)
4051 mm
Max. lift height below bucket level (B)
3815 mm
Ground clearance with bucket overturned (C)
3197 mm
Ground clearance with horizontal arm (D)
1792 mm
Bucket pick-up angle (E)
64º
Max. turning angle (F)
75º
Bucket pick-up angle on the ground (G)
59º
Digging depth (H)
214 mm
Starting force
2160 kg
Payload capacity
1824 kg
Load capacity at max. height
1530 kg
Recommended power
From 100 hp to 140 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te30
Max. lift height up to axis of rotation (A)
4031 mm
Max. lift height below bucket level (B)
4065 mm
Ground clearance with bucket overturned (C)
3447 mm
Ground clearance with horizontal arm (D)
1970 mm
Bucket pick-up angle (E)
62º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
2858 kg
Payload capacity
2133 kg
Load capacity at max. height
1755 kg
Recommended power
From 130 hp to 170 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Te40
Max. lift height up to axis of rotation (A)
4564 mm
Max. lift height below bucket level (B)
4327 mm
Ground clearance with bucket overturned (C)
3708 mm
Ground clearance with horizontal arm (D)
2140 mm
Bucket pick-up angle (E)
62º
Max. turning angle (F)
74º
Bucket pick-up angle on the ground (G)
57º
Digging depth (H)
214 mm
Starting force
3177 kg
Payload capacity
2550 kg
Load capacity at max. height
2215 kg
Recommended power
From 160 hp to 220 hp
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
Configuration options
AH System - Hydraulic cushioning
The hydraulic damping system on our loaders reduces impacts and vibrations during work, improving stability and operator comfort, as well as protecting the structure of the equipment.
Euro bucket quick release o Direct loader attachment to the implement
Our loaders offer two attachment release options for greater versatility: the Euro bucket quick release, which allows for quick and efficient changeover, and the direct attachment of the loader to the attachment, ideal for a more robust and secure connection.
MS System - Single lever mixer
Actuated by means of a single-handle with the possibility of performing two simultaneous movements. The single-handle crossgate of our loaders allows precise and smooth control of movements, improving ergonomics and facilitating handling for greater work efficiency.
DR2B System / DR4B System - Quick coupling of nozzles (flat faces) or 2 threaded nozzles release
Evolution shovels feature two versatile attachment systems: the DR2B System / DR4B System, which allows quick attachment of flat-faced nozzles for greater efficiency, and the 2 threaded nozzle release, which ensures secure attachment and easy removal.
Paint finish in different colors
The loaders are available in a wide range of colors to suit different preferences and needs. Each color offers a unique style without compromising the strength and quality of the equipment.
Contact us
Tell us what you need, we will be happy to help you.
