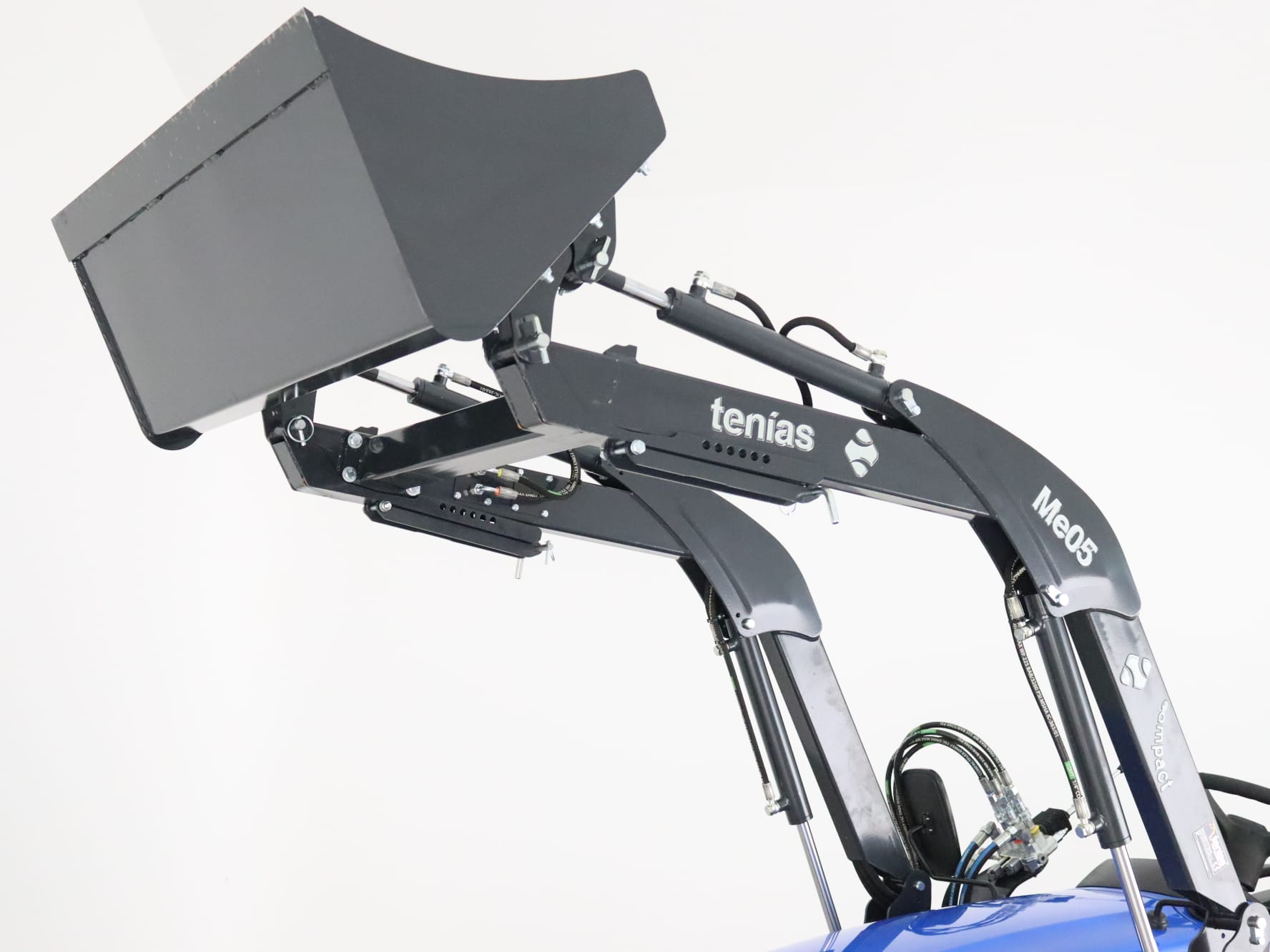

Compact Series Loader
Designed specifically for compact tractors and green space work, our loaders offer the perfect balance between lightness and robustness.
Product details
- Lubrication points
- Inner piping
- Dipstick
- Folding legs
- Bolts
- Adapted accommodations
Configuration options
- Leveling system
- Third function
- Uncoupling of Euro or Bobcat attachments
- Front defense
- Paint finish in different colors
Product details
Lubrication points
The loader has greasing points on the joints, facilitating maintenance and extending its service life.
Inner piping
The loader’s hydraulic hoses are housed in the boom, protecting them from shocks and allowing quick access to the connections.
Dipstick
This rod allows the operator to check the degree of oscillation of the implement.
Folding legs
Easy to fold and unfold, the folding legs are retracted along the arm.
Bolts
The loader is equipped with flanged pins at all joints (brake).
Couplings adapted to each tractor model
Specific adaptations for each tractor model to facilitate access to the engine.
Technical Data
NOTE: The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
MOD Me04
MOD Me05
MOD Me06
MOD Me07
NSL
MSL
NSL
MSL
NSL
MSL
NSL
MSL
Max. lift height up to axis of rotation (A)
1740 mm
1740 mm
1980 mm
1980 mm
2600 mm
2600 mm
2840 mm
2840 mm
Max. lift height below bucket level (B)
1550 mm
1550 mm
1790 mm
1790 mm
2420 mm
2420 mm
2660 mm
2660 mm
Ground clearance with bucket overturned (C)
1285 mm
1285 mm
1525 mm
1525 mm
2210 mm
2210 mm
2450 mm
2450 mm
Max. turning angle (E)
50º
50º
50º
50º
40º
40º
40º
40º
Reach with bucket on the ground (F)
1250 mm
1250 mm
1400 mm
1400 mm
1300 mm
1300 mm
1430 mm
1430 mm
Bucket pick-up angle (G)
50º
50º
50º
50º
40º
40º
40º
40º
Digging depth (H)
90 mm
90 mm
90 mm
90 mm
50 mm
50 mm
50 mm
50 mm
Starting force
390 kg
390 kg
450 kg
450 kg
770 kg
770 kg
1120 kg
1120 kg
Load capacity at max. height
310 kg
310 kg
365 kg
365 kg
420 kg
420 kg
600 kg
600 kg
Recommended power
Up to 25 hp
Up to 25 hp
Up to 30 hp
Up to 30 hp
From 30 hp to 45 hp
From 30 hp to 45 hp
From 45 hp to 60 hp
From 45 hp to 60 hp
Weight
90 kg
110 kg
101 kg
122 kg
155 kg
178 kg
181 kg
204 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
1740 mm
1740 mm
Max. lift height below bucket level (B)
1550 mm
1550 mm
Ground clearance with bucket overturned (C)
1285 mm
1285 mm
Max. turning angle (E)
50º
50º
Reach with bucket on the ground (F)
1250 mm
1250 mm
Bucket pick-up angle (G)
50º
50º
Digging depth (H)
90 mm
90 mm
Starting force
390 kg
390 kg
Load capacity at max. height
310 kg
310 kg
Recommended power
Up to 25 hp
Up to 25 hp
Weight
90 kg
110 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
1980 mm
1980 mm
Max. lift height below bucket level (B)
1790 mm
1790 mm
Ground clearance with bucket overturned (C)
1525 mm
1525 mm
Max. turning angle (E)
50º
50º
Reach with bucket on the ground (F)
1400 mm
1400 mm
Bucket pick-up angle (G)
50º
50º
Digging depth (H)
90 mm
90 mm
Starting force
450 kg
450 kg
Load capacity at max. height
365 kg
365 kg
Recommended power
Up to 30 hp
Up to 30 hp
Weight
101 kg
122 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
2600 mm
2600 mm
Max. lift height below bucket level (B)
2420 mm
2420 mm
Ground clearance with bucket overturned (C)
2210 mm
2210 mm
Max. turning angle (E)
40º
40º
Reach with bucket on the ground (F)
1300 mm
1300 mm
Bucket pick-up angle (G)
40º
40º
Digging depth (H)
50 mm
50 mm
Starting force
770 kg
770 kg
Load capacity at max. height
420 kg
420 kg
Recommended power
From 30 hp to 45 hp
From 30 hp to 45 hp
Weight
155 kg
178 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
2840 mm
2840 mm
Max. lift height below bucket level (B)
2660 mm
2660 mm
Ground clearance with bucket overturned (C)
2450 mm
2450 mm
Max. turning angle (E)
40º
40º
Reach with bucket on the ground (F)
1430 mm
1430 mm
Bucket pick-up angle (G)
40º
40º
Digging depth (H)
50 mm
50 mm
Starting force
1120 kg
1120 kg
Load capacity at max. height
600 kg
600 kg
Recommended power
From 45 hp to 60 hp
From 45 hp to 60 hp
Weight
181 kg
204 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
1740 mm
1740 mm
Max. lift height below bucket level (B)
1550 mm
1550 mm
Ground clearance with bucket overturned (C)
1285 mm
1285 mm
Max. turning angle (E)
50º
50º
Reach with bucket on the ground (F)
1250 mm
1250 mm
Bucket pick-up angle (G)
50º
50º
Digging depth (H)
90 mm
90 mm
Starting force
390 kg
390 kg
Load capacity at max. height
310 kg
310 kg
Recommended power
Up to 25 hp
Up to 25 hp
Weight
90 kg
110 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
1980 mm
1980 mm
Max. lift height below bucket level (B)
1790 mm
1790 mm
Ground clearance with bucket overturned (C)
1525 mm
1525 mm
Max. turning angle (E)
50º
50º
Reach with bucket on the ground (F)
1400 mm
1400 mm
Bucket pick-up angle (G)
50º
50º
Digging depth (H)
90 mm
90 mm
Starting force
450 kg
450 kg
Load capacity at max. height
365 kg
365 kg
Recommended power
Up to 30 hp
Up to 30 hp
Weight
101 kg
122 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
2600 mm
2600 mm
Max. lift height below bucket level (B)
2420 mm
2420 mm
Ground clearance with bucket overturned (C)
2210 mm
2210 mm
Max. turning angle (E)
40º
40º
Reach with bucket on the ground (F)
1300 mm
1300 mm
Bucket pick-up angle (G)
40º
40º
Digging depth (H)
50 mm
50 mm
Starting force
770 kg
770 kg
Load capacity at max. height
420 kg
420 kg
Recommended power
From 30 hp to 45 hp
From 30 hp to 45 hp
Weight
155 kg
178 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
The dimensions shown may vary according to the model and type of tractor.
Measurements were taken with working pressure at 190 BAR and weight placed on pallet forks.
Measures
NSL
MSL
Max. lift height up to axis of rotation (A)
2840 mm
2840 mm
Max. lift height below bucket level (B)
2660 mm
2660 mm
Ground clearance with bucket overturned (C)
2450 mm
2450 mm
Max. turning angle (E)
40º
40º
Reach with bucket on the ground (F)
1430 mm
1430 mm
Bucket pick-up angle (G)
40º
40º
Digging depth (H)
50 mm
50 mm
Starting force
1120 kg
1120 kg
Load capacity at max. height
600 kg
600 kg
Recommended power
From 45 hp to 60 hp
From 45 hp to 60 hp
Weight
181 kg
204 kg
INCLUDES
- Coupling
- Arms
- Hydraulic installation (solenoid valve, distributor, or tractor controls)
- All elements for its operation (cylinders, hoses, connections, etc.)
- DRB System (flat faces)
NOT INCLUDED
- Buckets
- Forks
Configuration options
Leveling system (Parallelogram)
The leveling system of our compact loader ensures precise and constant adjustment, automatically adapting to variations in the terrain.
Uncoupling of Euro or Bobcat attachments
Its robust and safe design minimizes downtime, optimizing productivity in any work environment.
Third function
Solenoid valve / Distributor with cross joystick.
Front defense
Its rugged, ergonomic design ensures superior structural integrity, optimizing safety and extending equipment life.
Paint finish in different colors
The wide range of shades offers versatility and distinction, adapting to the tastes and needs of each customer.
